$20.99 Original price was: $20.99.$16.99Current price is: $16.99.
Wiki: https://github.com/pibiger-tech/picam-imx219
Features:

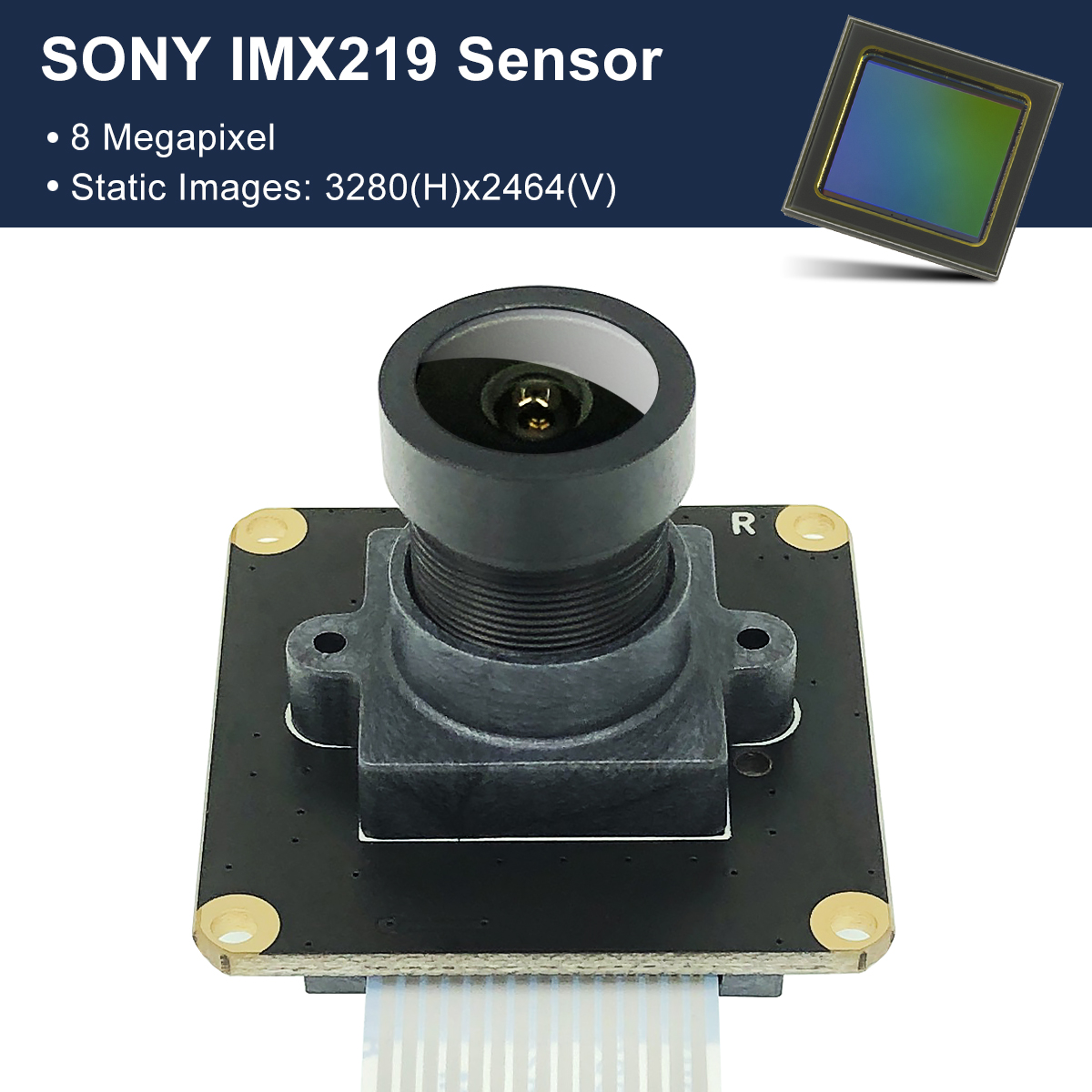

raspberry pi camera v2 Sensor Type: Low-cost 8 Megapixel IMX219 Sensor, Static Images: 3280(H)x2464(V) pixel, Support 1080p@30fps, 720p@60fps and 640x480p@90fps video record.

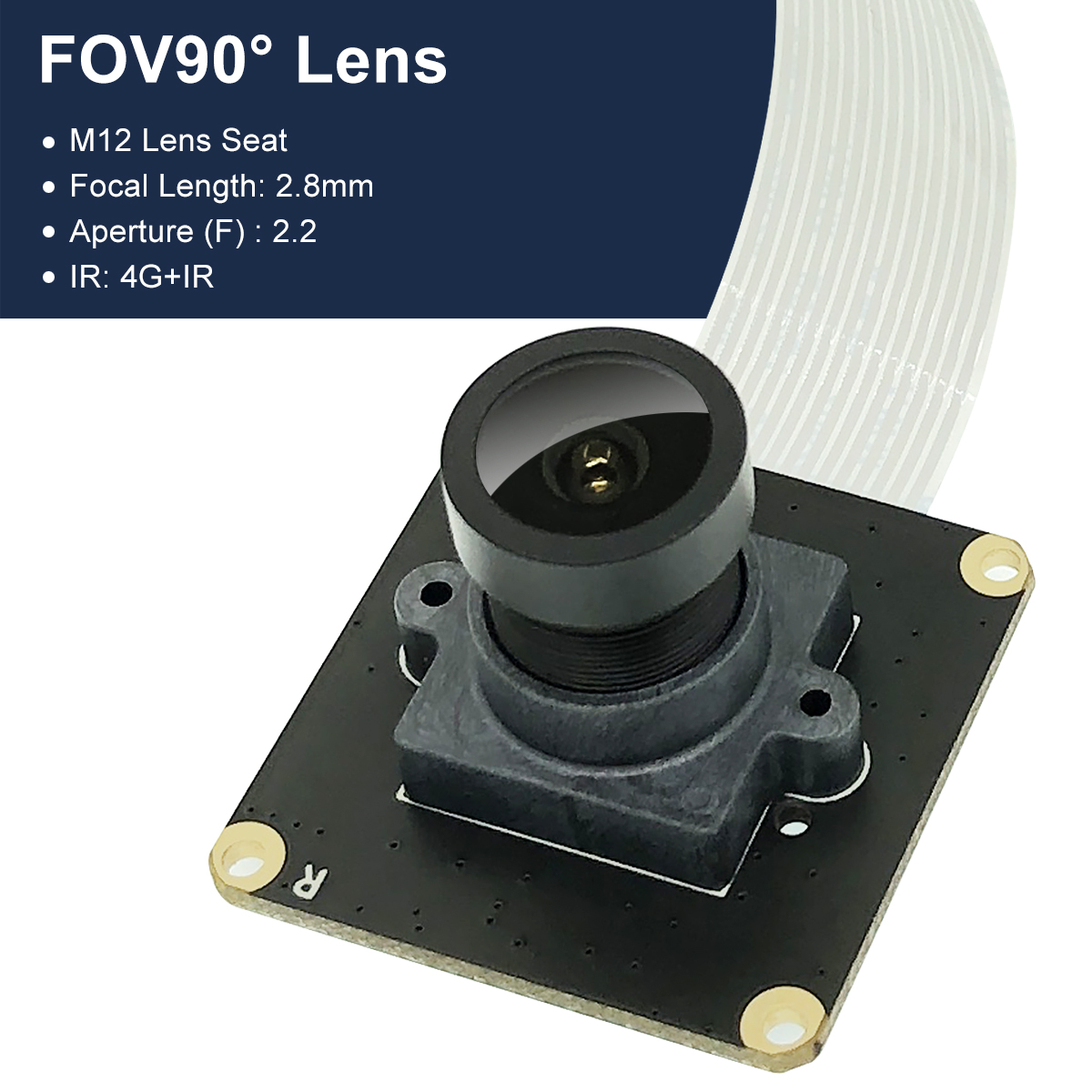

Lens: M12 Lens Seat, FOV90 Degree Lens, Focal Length: 2.8mm, Aperture (F) : 2.2, IR: 4G+IR.
Board Size: 32mm x 32mm.
Packing List: PICAM-IMX219-FOV90 Module x1, FPC Cable x1, FOV90 Degree Camera Lens x1.
| Sensor Type: | Low-cost 8 Megapixel IMX219 Sensor, Static Images: 3280(H)x2464(V) pixel, Support 1080p@30fps, 720p@60fps and 640x480p@90fps video record. |
| Camera Lens: | M12 Lens Seat, FOV90 Degree Lens, Focal Length: 2.8mm, Aperture (F) : 2.2, IR: 4G+IR. |
| Packing List: | PICAM-IMX219-FOV90 Module x1, FPC Cable x1, FOV90 Degree Camera Lens x1. |

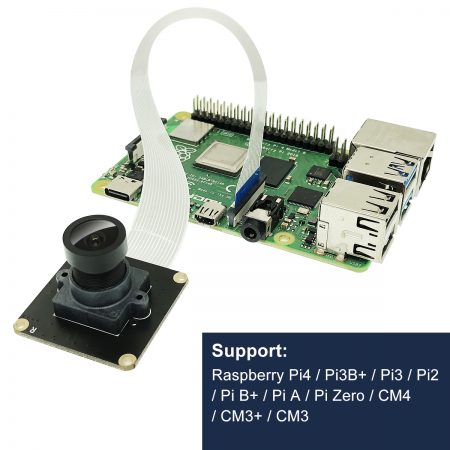

| Support Hardware | Raspberry PI4/PI3+/PI3/PI2/PI0/CM4/CM3+/CM3/Jetson Nano/Jeton Xaiver |
Step1, Modify config.txt
For the latest version raspberry Pi OS, it should be
Step2, Add below content to the last line
Step3, Reboot and use below command to preview
Step 1: Open the terminal and execute the following
Step 2: Select Configure Jetson Nano CSI Connector
Step 3: Select Configure for compatible hardware
Step 4: Select the camera that you want to use
Step 5: Select Save pin changes
Step 6: Select Save and reboot to reconfigure pins
Step 7: Press any key on the keyboard and the device will reboot with the applied camera configuration
For CAM0 port
For CAM1 port
| PI Camera |
|---|
