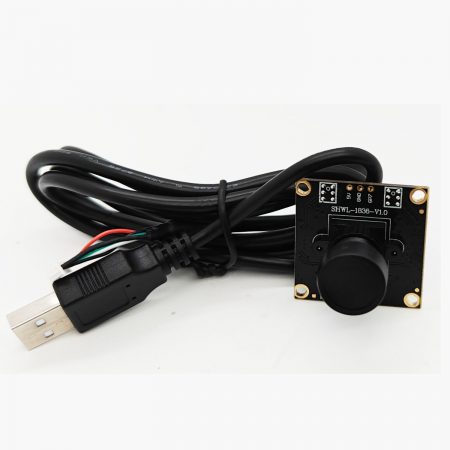

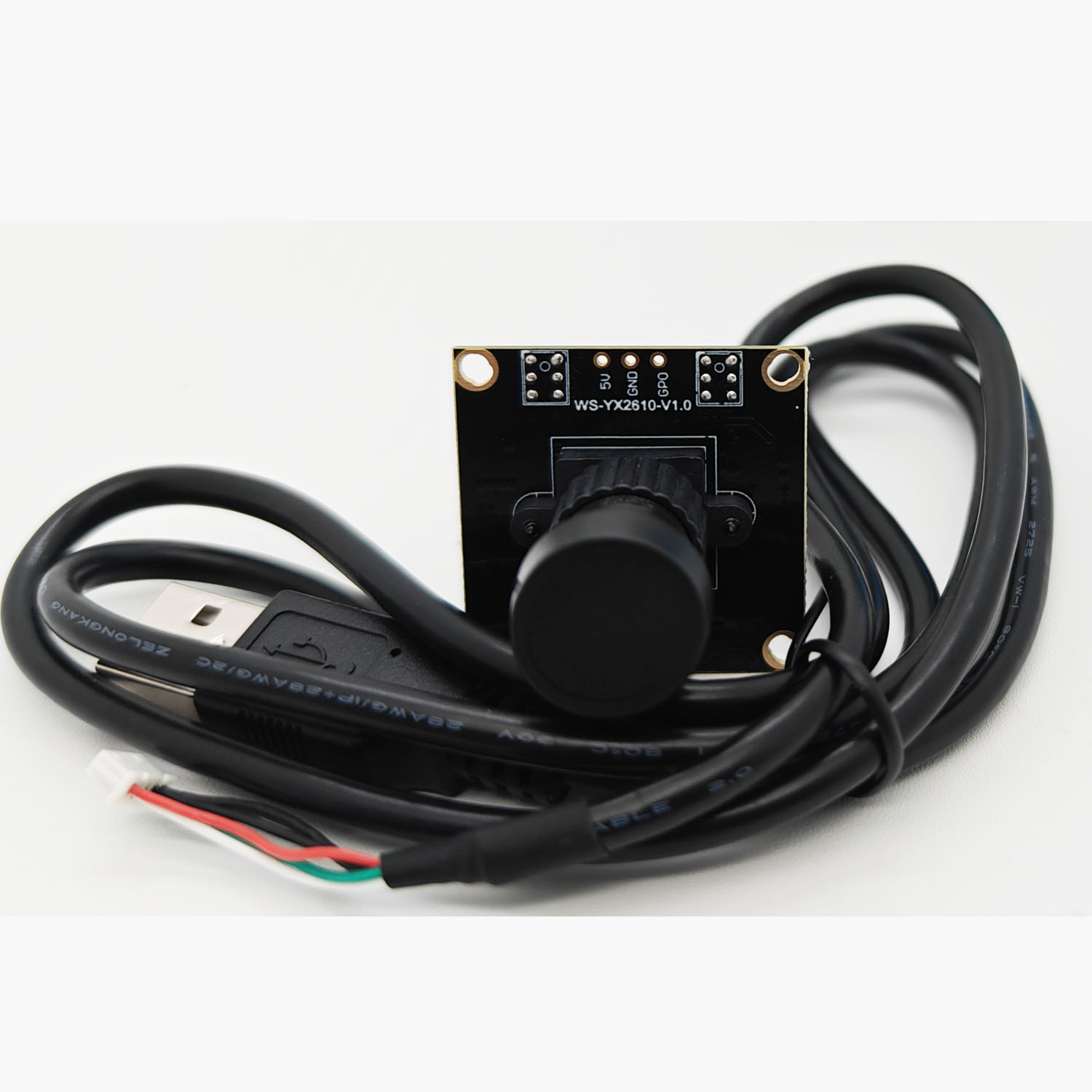

U20CAM-PS5268, USB2.0 2MP 1080P high sensitivity HDR Camera Module With Sensor PS5268
U20CAM-PS5268, USB2.0 2MP 1080P high sensitivity HDR Camera Module With Sensor PS5268 - Image 2

U20CAM-PS5268, USB2.0 2MP 1080P high sensitivity HDR Camera Module With Sensor PS5268

Original price was: $29.99.Current price is: $26.99.

Key Feature:

  • 2MP resolution (1920×1080) with PrimeSensor PS5268 Sensor
  • Low power consumption, only 80mA
  • High Dynamic Range (HDR) up to 85dB
  • High sensitivity of 5800 mV/Lux-sec
  • UVC compliant, Plug & Play
  • Support Linux, Android, Mac and Windows
  • A wide range of different lenses are available
  • Customization is fully supported
Quantity Discount (%) Price
1 - 29 — $26.99
30 - 99 3.71 % $25.99
100 - 299 4.82 % $25.69
300+ 7.41 % $24.99
x
Category: SKU: U20CAM-PS5268

Description

Description:

  • U20CAM-PS5268 is 2MP resolution with PS5268 sensor, which features high sensitivity of 5800 mV/Lux-sec and High dynamic range (HDR) of 85dB, and can be used for all kinds of lighting conditions.
  • Our camera module size is 32mmx32mm and can be customized as per your requirement;

Customized Design:

  • We have a wide variety of lens options for you to choose, with FOV from 40° to 220°, with focal length from 2.8mm to 16mm, etc
  • This camera module is widely used for many applications like security, surveillance, CCTV, industrial automation, automotive, factory automation, monitoring, access control, artificial intelligence (AI), machine vision, robotics, robots, computer vision, agriculture, education, 3D, detection, vision system, imaging, etc

Module Specification

Model No U20CAM-PS5268-ISP-2MP
Sensor 1/2.7’’ PrimeSensor CMOS Sensor
Pixel 2 Mega Pixel
Most effective pixels 1920(H) x 1080(V)
Pixel Size 3.0µm x 3.0µm
Compression format MJPEG / YUV2 (YUYV)
Resolution & Frame rate MJPG:

1920×1080@30FPS; 1280×1024@30FPS; 1280×720@30FPS; 800×600@30FPS; 640×480@30FPS;



YUY2:

1920×1080@5FPS; 1280×720@10FPS; 960×540@15FPS; 800×600@20FPS; 640×480@30FPS;
Shutter Type Electronic rolling shutter
Focus type Fixed focus
S/N ratio 41dB
Dynamic range 85dB
Sensitivity 5800mV / lux-sec
Interface type USB2.0


Adjustable parameter

 Brightness/Contrast/Color saturation/Hue/Definition/

Gamma/White balance/Exposure
Power supply USB BUS POWER
Power consumption DC 5V, 80mA
Main chip DSP/SENSOR/FLASH
Auto Exposure Control (AEC) Support
Auto White Balance (AEB) Support
Auto Gain Control (AGC) Support
Dimension 32mmx32mm
Storage temperature -20°C to 70°C
Operating  temperature 0°C to 60°C
USB cable length Default




Support OS

 WinXP/Vista/Win7/Win8/Win10

Linux with UVC（above linux-2.6.26）

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC



Working Condition

  • Operating Temperature: 0°C-70°C,
  • Storage temperature -20°C to 70°C
  • Dimension 32mmx32mm

Lens Specification

F/N 2.3
Focus Length 3mm
CRA 14°
Disortion 25％
FOV 135（H）x110(V)x58(D)
Lens Seat distance 18mm
Fixed Type Fixed Len
IR 650±10nm
