Description

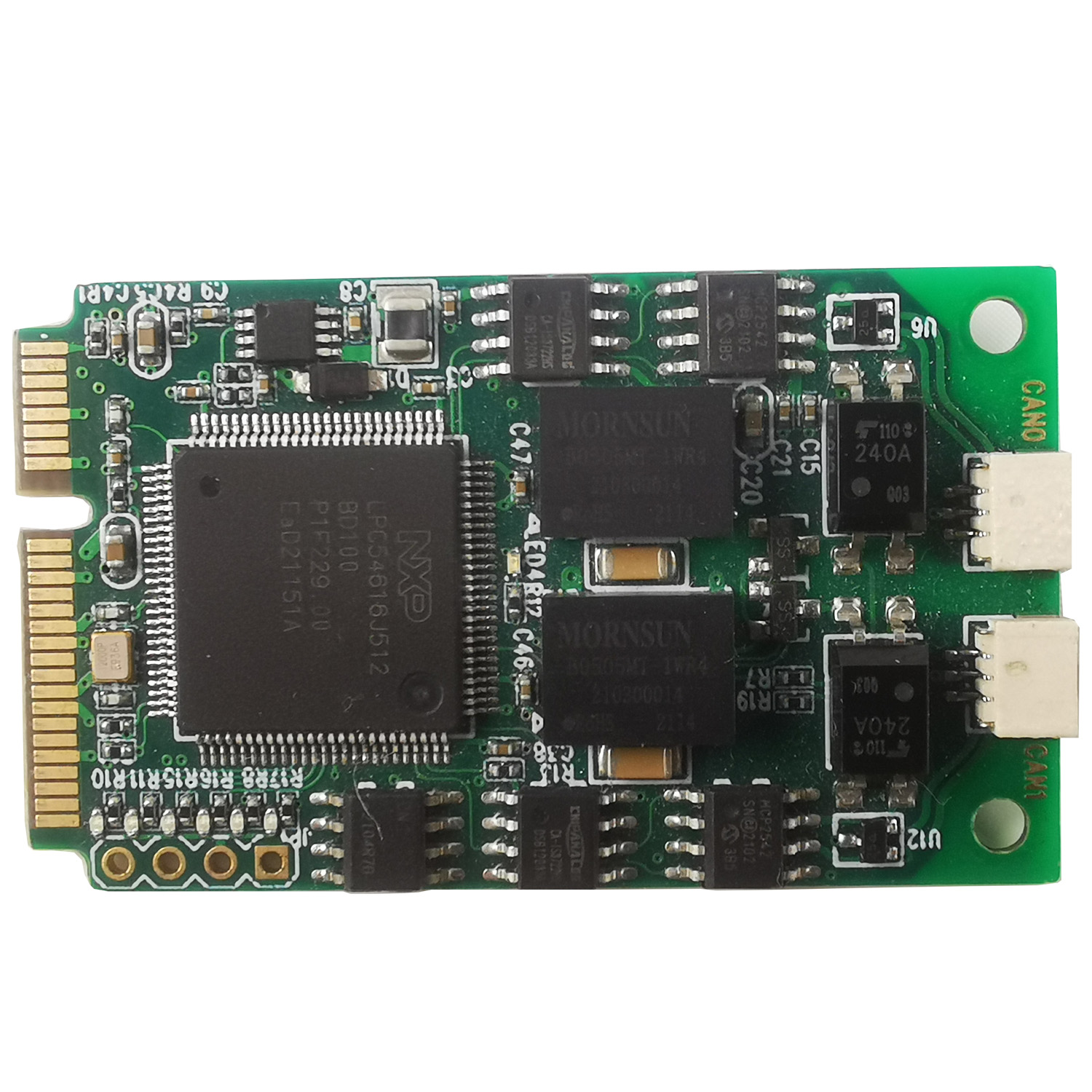

SavvyCAN-FD-M
The SavvyCAN-FD-M is a plug and play high speed USB2.0 to Dual Channel CANFD CAN Card for X86,ARM,Computer with mini pcie interface.
CAN FD each channel is separately isolated against USB with a maximum of 2500V.
USB To Dual Channel CANFD with mini pcie interface (usb2.0 bus)
Features:

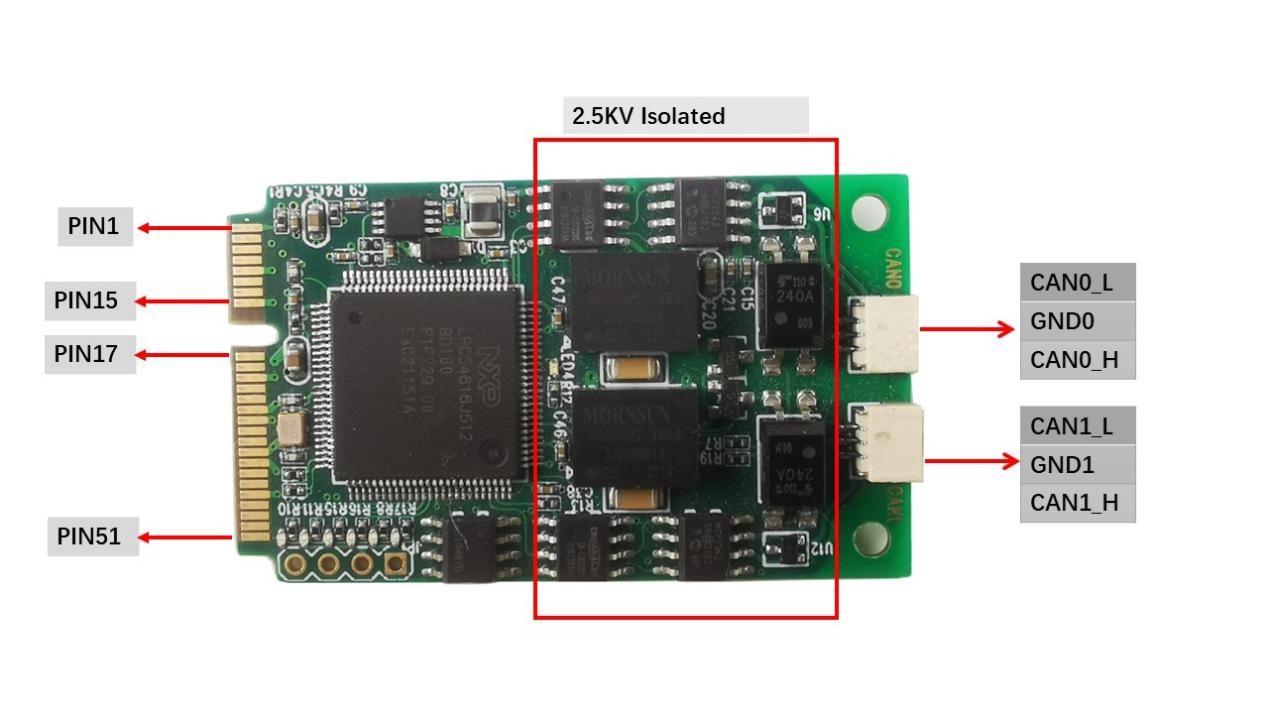

| Connector | |
| Dual Channel CANFD | 2X3PIN 1mm Connector |
| Mini PCIE USB | USB BUS |
| CAN Features | |
| Protocols | CAN 2.0A (standard format)
CAN 2.0B (extended format) CAN FD ISO 11898-1:2015 CAN FD non-ISO |
| CAN bit rates | 25 kbit/s up to 1 Mbit/s |
| CANFD bit rates | 25 kbit/s up to 12Mbit/s |
| USB ESD | IEC 61000-4-2 Level 4
+25 kV (contact discharge) +30 kV (air-gap discharge) |
| Galvanic isolation | Signal &Power Separately Isolated by 2500 Volts against USB
IEC 61000-4-2 Contact IEC 61000-4-2 Air ISO 10605 150 pF / 2 k2 Contact ISO 10605 330 pF 1 2 k2 Contact |
| Micro controller | 180MHZ Cortex-M4 MCU |
| Timestamp resolution | 1 μs |
| Built In 120Ω Termination Resistor | Activated/Deactivated Through Software |
| Others | |
| Temperature | -40°~ 85° |
| PCBA Size (L * W * H) | 84x80x28 mm |
| Weight | 190 g |
LED Indication
| Description | Indication | |
| A | Power&Driver LED | Blinking, Driver install and Power Up |
| B | CAN0 120Ω Term | On, CAN0 Term Enable; Off, CAN0 Term Disable |
| C | CAN1 120Ω Term | On, CAN1 Term Enable; Off, CAN1 Term Disable |
| D | CAN0 Receive | Blinking，CAN0 Receiving Data; |
| E | CAN0 Send | Blinking，CAN0 Sending Data; |
| F | CAN1 Receive | Blinking，CAN1 Receiving Data; |
| G | CAN1 Send | Blinking，CAN0 Receiving Data; |

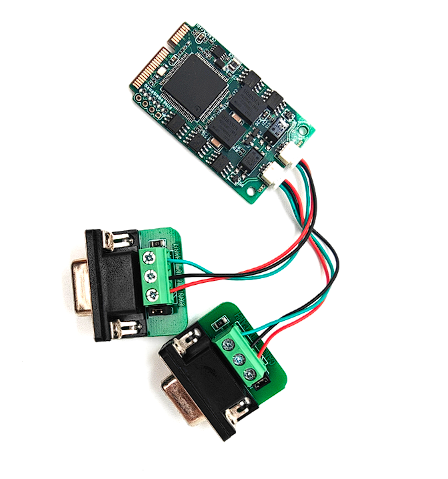

Packing List
- SavvyCAN-FD-M X1
- 3PIN Cable x2
- DB9 Term x2
