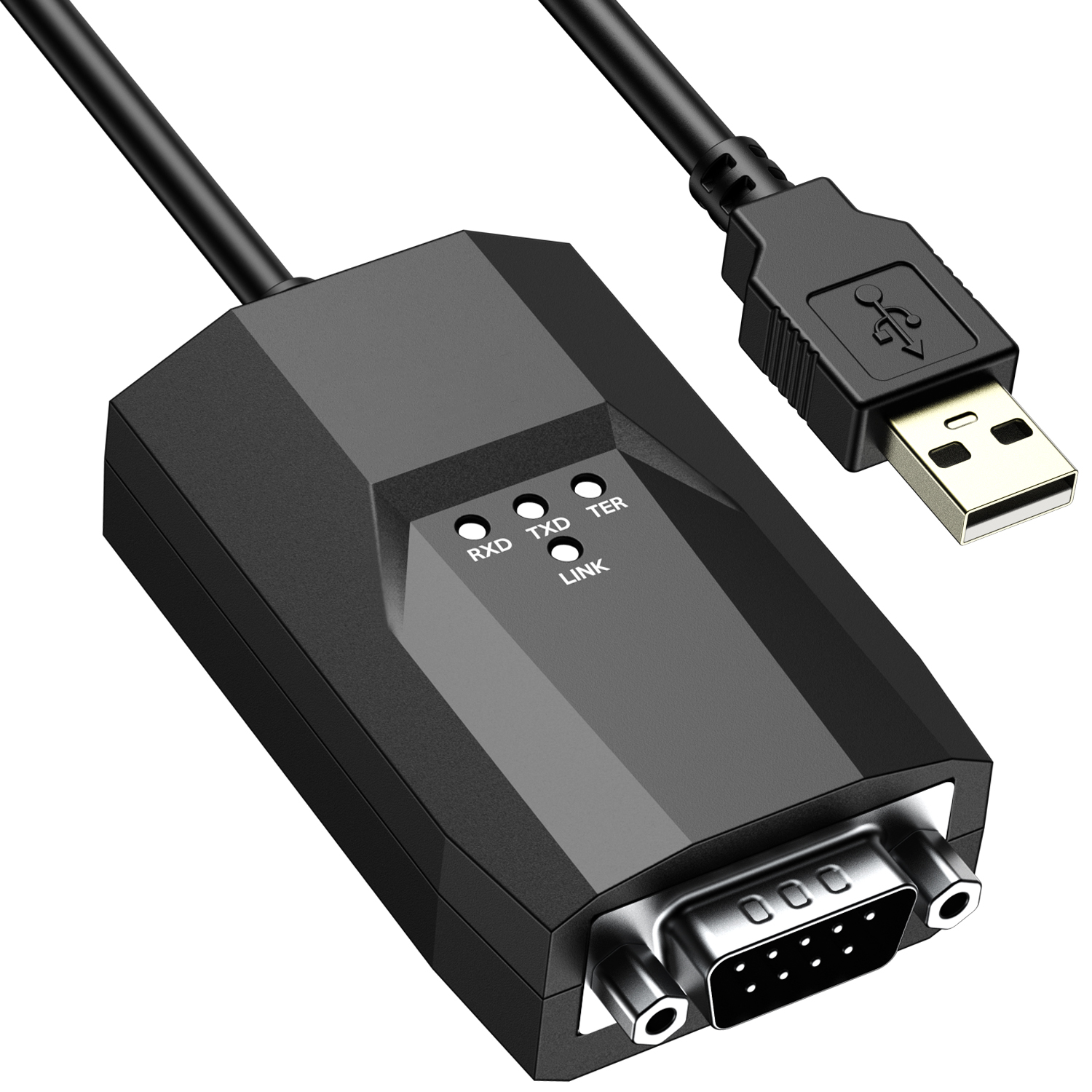

SavvyCAN-FD-C,Pibiger USB TO CANFD Cable,Industrial Grade,support SavvyCAN FD Software,CE,FCC
SavvyCAN-FD-C,Pibiger USB TO CANFD Cable,Industrial Grade,support SavvyCAN FD Software,CE,FCC - Image 2
SavvyCAN-FD-C,Pibiger USB TO CANFD Cable,Industrial Grade,support SavvyCAN FD Software,CE,FCC - Image 3
SavvyCAN-FD-C,Pibiger USB TO CANFD Cable,Industrial Grade,support SavvyCAN FD Software,CE,FCC - Image 4
SavvyCAN-FD-C,Pibiger USB TO CANFD Cable,Industrial Grade,support SavvyCAN FD Software,CE,FCC - Image 5
SavvyCAN-FD-C,Pibiger USB TO CANFD Cable,Industrial Grade,support SavvyCAN FD Software,CE,FCC - Image 6
SavvyCAN-FD-C,Pibiger USB TO CANFD Cable,Industrial Grade,support SavvyCAN FD Software,CE,FCC - Image 7
SavvyCAN-FD-C,Pibiger USB TO CANFD Cable,Industrial Grade,support SavvyCAN FD Software,CE,FCC - Image 8

SavvyCAN-FD-C,Pibiger USB TO CANFD Cable,Industrial Grade,support SavvyCAN FD Software,CE,FCC

Original price was: $79.00.Current price is: $59.00.

Features:

  • High-speed USB 2.0 CANFD Cable with 1 metre longth high quality wire-shielding cable, Compatible with CAN2.0A, CAN2.0B, CAN FD
  • CAN FD bit rates from 25 kbit/s up to 12Mbit/s,Timestamp resolution up tp 1μs
  • Support Software Activated/Deactivated built in 120Ω Term Resistor; Support CAN Clock Settings by Software
  • Software Support:
    • Windows
    • Linux Instruction
    • Linux SOCKET-CAN:CAN Utils
    • SavvyCAN

WIKI:

  •  https://docs.pibiger-tech.com/home/usb-can-fd-series/savvycan-fd-series-product



Datasheet

Quantity Discount (%) Price
1 - 2 — $59.00
3 - 9 5.08 % $56.00
10+ 10.17 % $53.00
x
Category: SKU: SavvyCAN-FD-C

Description

Product Description

USB to CANFD Converter Adapter

  • The SavvyCAN-FD-C is a plug and play high speed USB2.0 to CANFD Cable with 1 metre high quality wire-shielding cable enble the CANFD connection to CAN networks from a computer. CANFD channel is isolated against USB with a maximum of 2500V.
  • The new CAN FD standard (CAN with Flexible Data rate) is primarily characterized by higher bandwidth for data transfer. The maximum of 64 data bytes per CAN FD frame (instead of 8 so far) can be transmitted with bit rates up to 12 Mbit/s, SavvyCAN-FD-C supports 120ohm termination resistor enable by software.

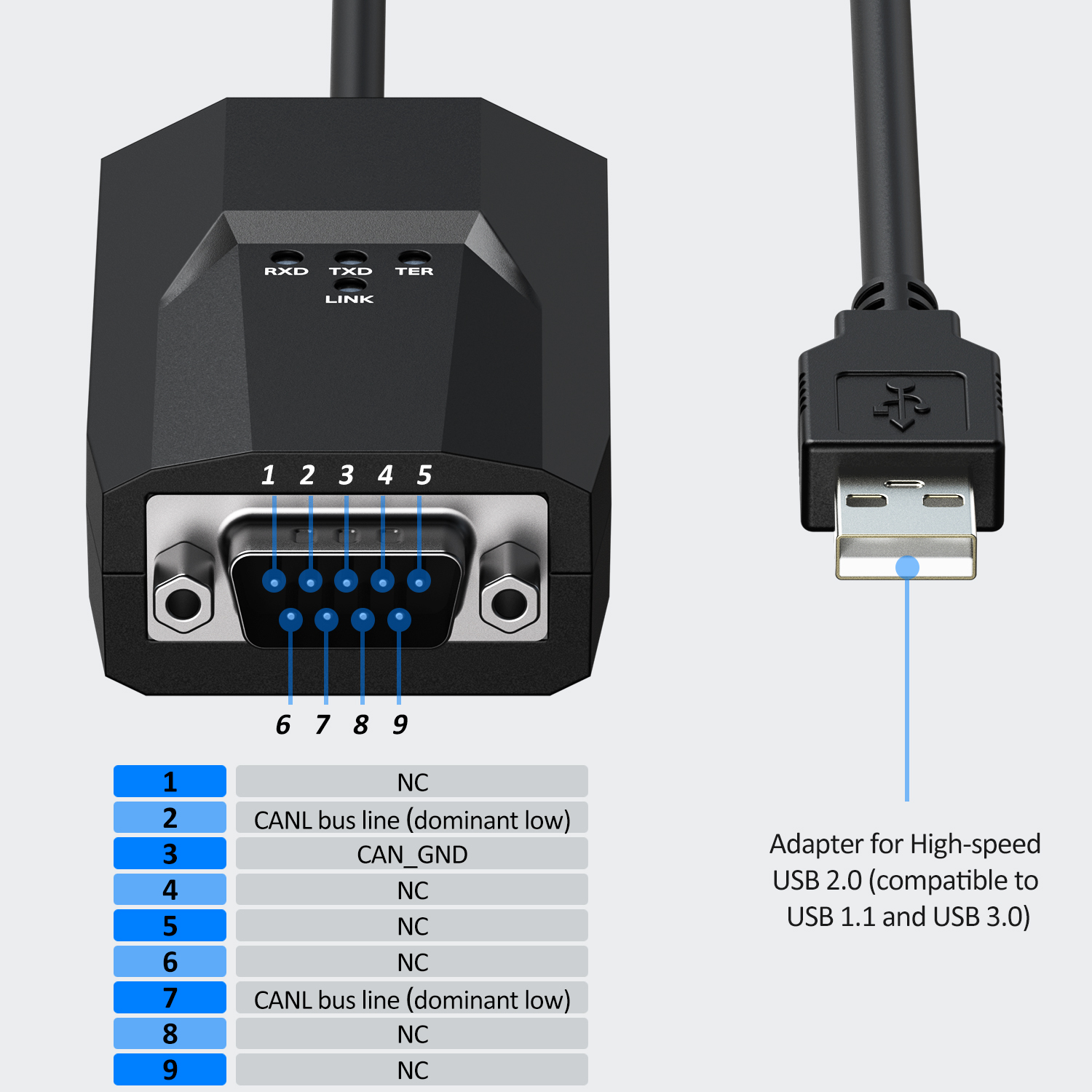

  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA@303-1)
  • Provide Drivers for Windows/Linux, Compatible with windows Busmaster, Linux Socket CAN, SavvyCAN.
  • The monitor software and the programming interface for the development of applications with CAN connection are included in the scope of supply and support the new standard CAN FD.

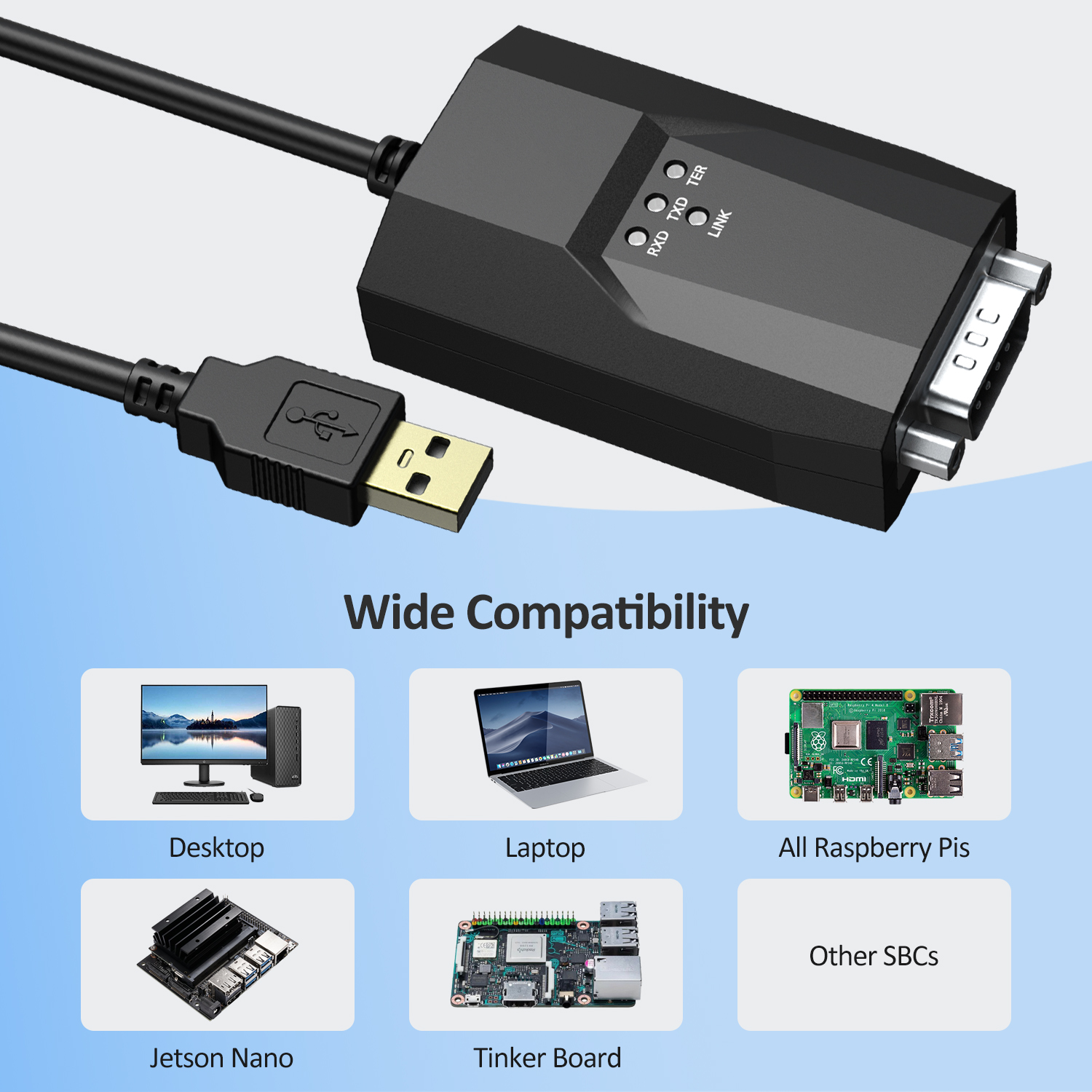

Compatible with below devices and other SBCs

USB to CANFD converter adapter cable

USB to CANFD converter adapter cable

USB to CANFD converter adapter cable

USB to CANFD converter adapter cable

Desktop & Laptop

All Raspberry Pi Boards

Jetson Nano

Tinker Board

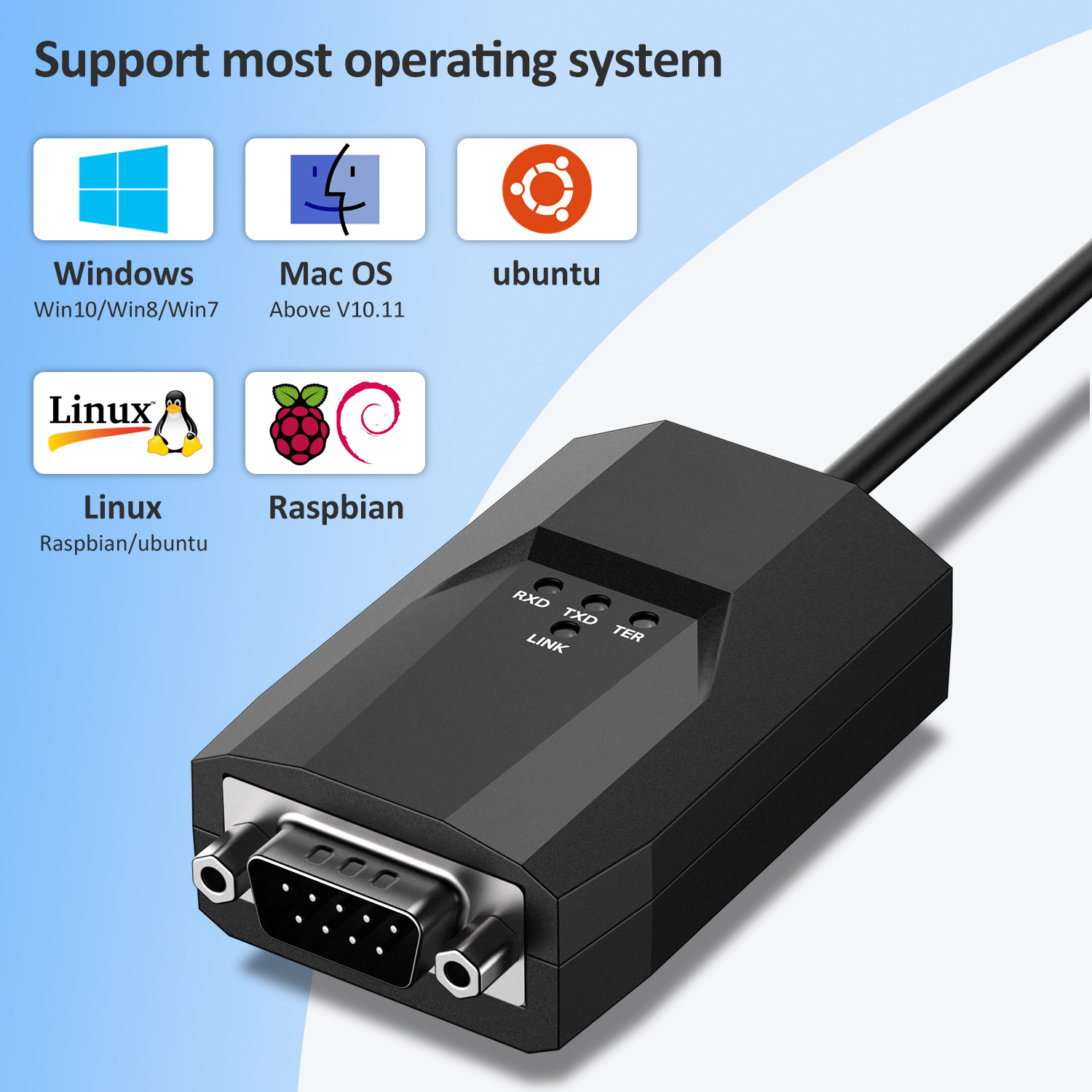

Support most operating system

USB to CANFD converter adapter cable

USB to CANFD converter adapter cable

USB to CANFD converter adapter cable

USB to CANFD converter adapter cable

Windows

Win10/Win8/Win7

Mac OS

Above V10.11

Linux

Linux & ununtu

Raspberry Pi

Raspbian

System Requirements:

  • Operating system Windows 10, 8.1, 7 (32/64-bit) or Linux (32/64-bit)
  • A vacant USB port (USB 1.1, USB 2.0 or USB 3.0 ) at the computer or at a USB hub connected to the computer



Scope of Supply:

  • SavvyCAN-FD-C Cable CAN FD interface drivers for Windows 10, 8.1, 7 and Linux (32/64-bit)

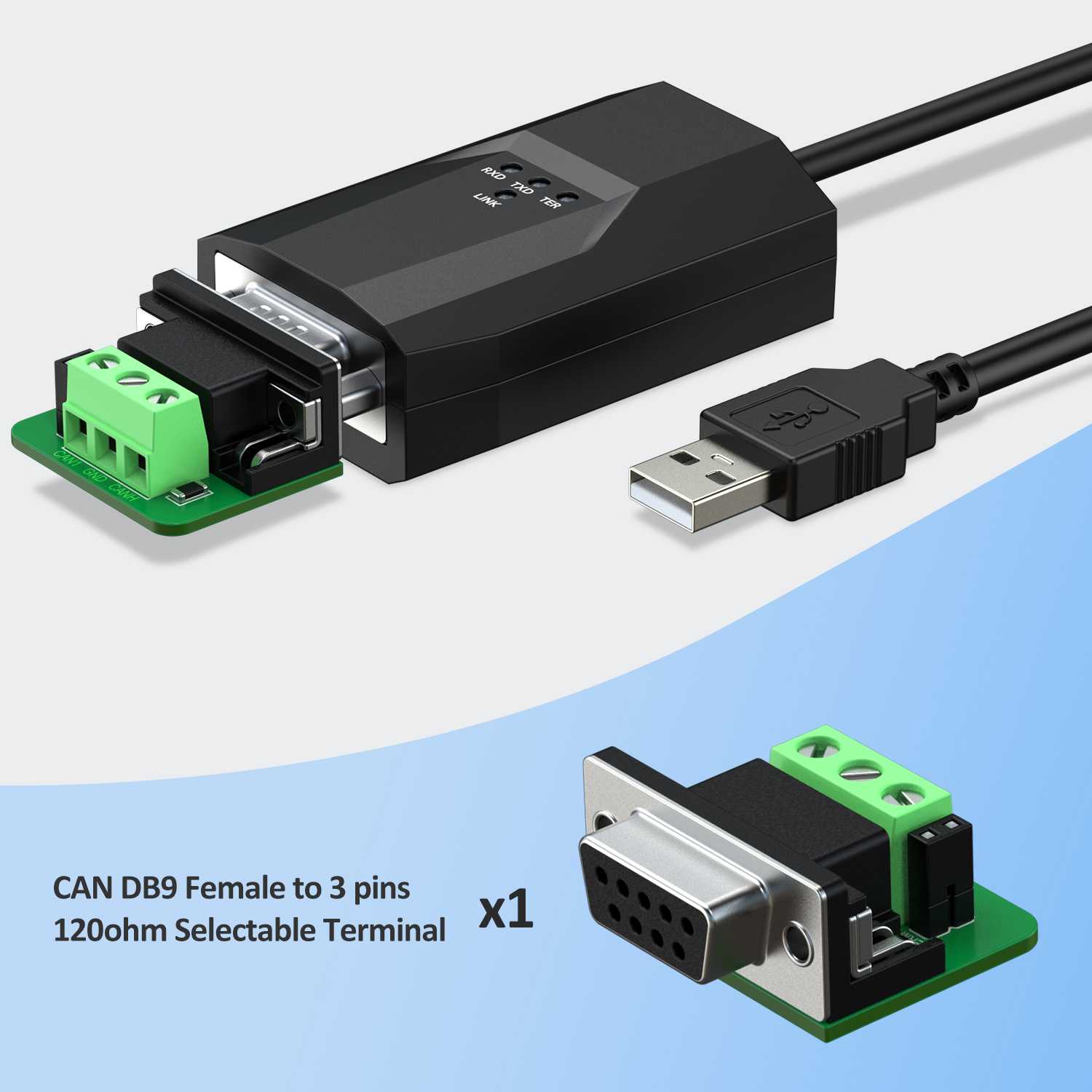

  • Dual DB9 To Terminal Adapter Board with 120ohm TERM RESISTOR Selectable By Jumper
  • Programming interface for developing applications with CAN connection
  • Programming interfaces for standardized protocols from the manual in PDF format



Protocols:

  • CAN 2.0A (standard format)
  • CAN 2.0B (extended format)
  • CAN FD ISO 11898-1:2015
  • CAN FD non-ISO
  • CAN bit rates: 25 kbit/s up to 1 Mbit/s
  • CANFD bit rates: 25 kbit/s up to 12Mbit/s



Software Support:

  • Windows
  • Linux Instruction
  • Linux SOCKET-CAN:CAN Utils
  • SavvyCAN
