Raspberry PI CM4 Industrial SBC
Raspberry PI CM4 Industrial SBC - Image 2
Raspberry PI CM4 Industrial SBC - Image 3

Raspberry PI CM4 Industrial SBC

Original price was: $239.00.Current price is: $219.00.

Features:

  • Broadcom BCM2711, quad core Cortex-A72 (ARM v8) 64-bit SoC @ 5GHz
  • Up to 8GB LPDDR4 RAM and 32GB eMMC storage
  • Support Micro SD card
  • LAN supports up to 1Gbps (dual Lans are optional)
  • Support 2 x USB 3.0 and 3 x USB 2.0
  • Support 2 x RS485 ,1x CAN,1xRS232
  • Support 2x HDMI,2xCSI,1XDSI
  • Options for 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth and 4G LTE
  • Options for PoE power supply
  • Wide voltage power input range of DC 9V~36V
  • Integrated RTC

Defaul Item:

  • CM4-ET-IND-L40W, CM4104000 CM4 Computer Module, Features with LPDDR4 4GB,0GB EMMC, WIFI/BT
x
Category: SKU: CM4-ET-IND

Description

CM4-ET-IND

Overview

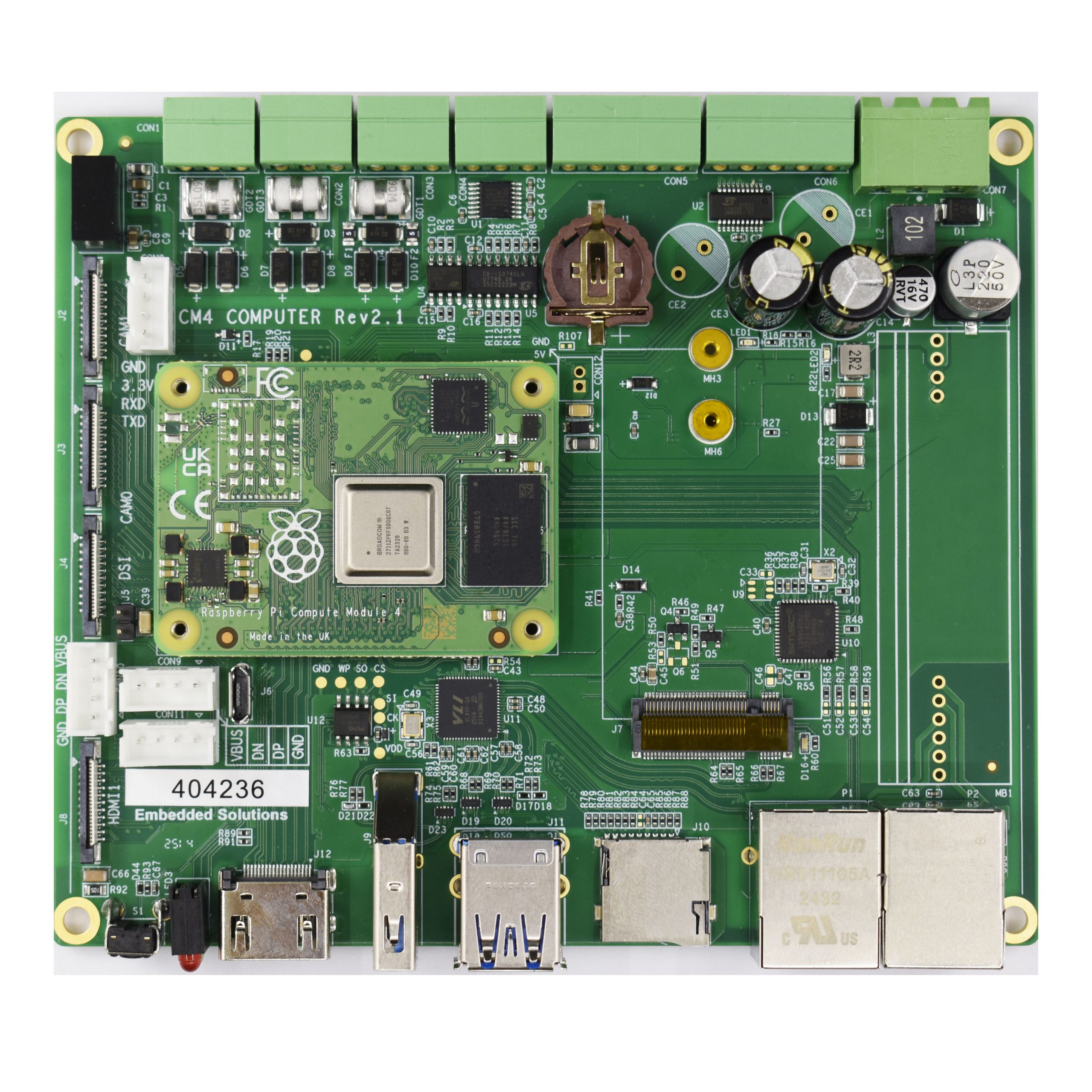

CM4-ET-IND a single board computer based on Raspberry Pi CM4. According to different application scenarios and user needs, different specifications of RAM and eMMC computer systems can be selected.

  • Options for 1GB, 2GB, 4GB and 8GB RAM
  • Options for 8GB, 16GB and 32GB eMMC storage

CM4-ET-IND provides common interfaces such as HDMI, USB, Ethernet, RS232 and RS485, and supports access to the network through Wi-Fi, Ethernet and 4G. It supports Micro SD Card, integrates RTC, mainly used in industrial control and IOT.







Software Specification:

System
CPU Broadcom BCM2711, quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz


VPU

 H.265(HEVC), up to 4Kp60 decode

H.264, up to 1080p60 decode, 1080p30 encode
GPU OpenGL ES 3.1 & Vulkan 1.0
Memory Options for 1GB, 2GB, 4GB, 8GB LPDDR4-3200 SDRAM


Storage

 Options for 8GB, 16GB, 32GB eMMC storageMicro SD card (user storage expansion) mSATA SSD (optional)



Software






Operating System

 Raspberry Pi OS (Desktop) 32-bit Raspberry Pi OS (Lite) 32-bit Raspberry Pi OS (Desktop) 64-bit Raspberry Pi OS (Lite) 64-bit

Hardware Specification:

Raspberry PI CM4

System
CPU Broadcom BCM2711, quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz


VPU

 H.265(HEVC), up to 4Kp60 decode

H.264, up to 1080p60 decode, 1080p30 encode
GPU OpenGL ES 3.1 & Vulkan 1.0
Memory Options for 1GB, 2GB, 4GB, 8GB LPDDR4-3200 SDRAM


Storage

 Options for 8GB, 16GB, 32GB eMMC storageMicro SD card (user storage expansion) mSATA SSD (optional)

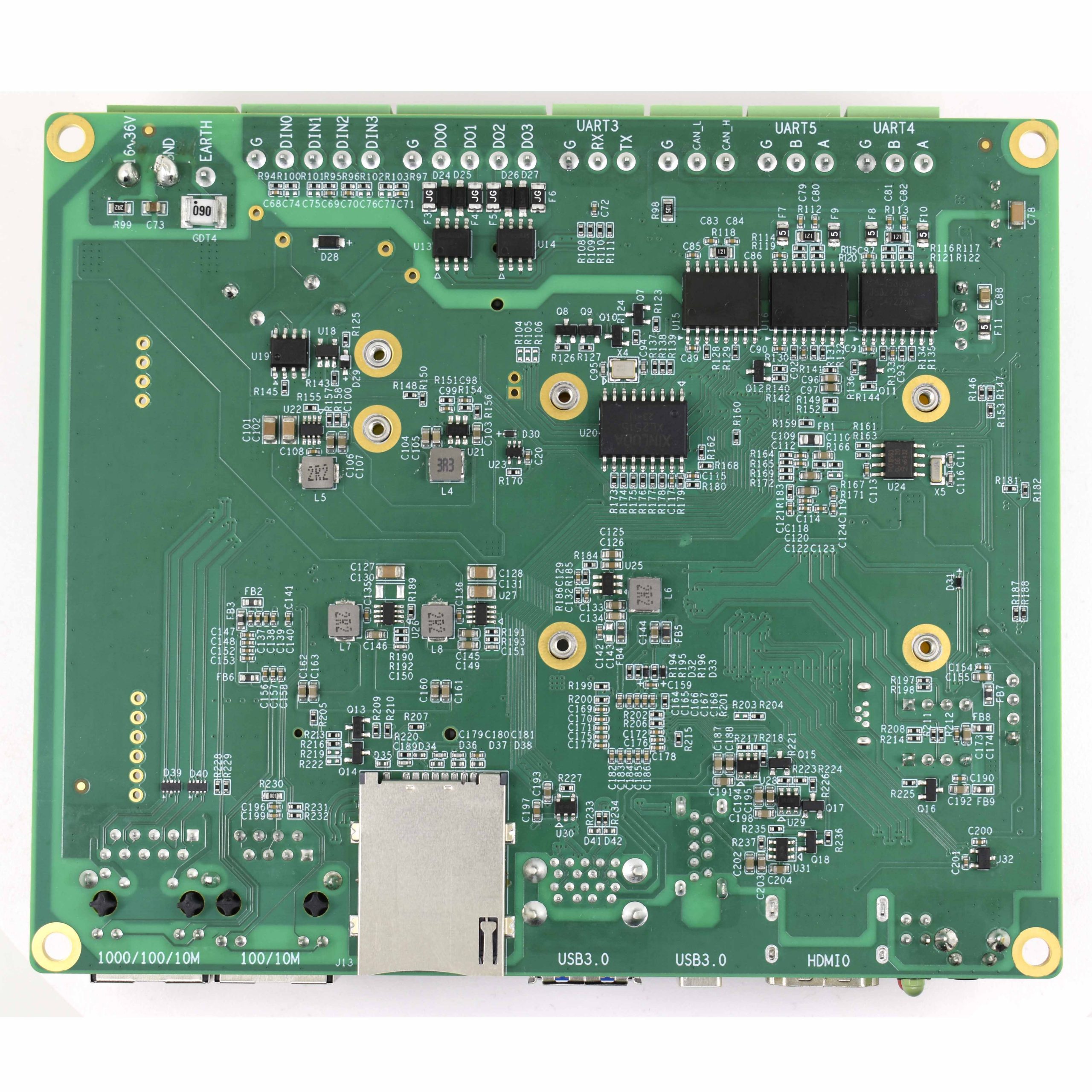

Carrier Board Interface

1. Connectivity

1.1Ethernet:

  • 1x 100/10Mbps GBE Port
  • 1x 1Gbps GBE Port (POE support,Option)

1.2Wireless:

  • 4G/5G Cellular Module Slot

1.3USB:

  • 2x USB3.0 Host
  • 1x USB2.0 Host

1.4Serial Communications:

  • 1x RS232
  • 2x RS485
  • 1x CAN Bus

1.5Other:

  1. 1x UART0

2. Display & Video

2.1HDMI:

  • 2x HDMI Ports (HDMI 0, HDMI 1)

2.2MIPI Interfaces:

  • 2x MIPI CSI (CSI0, CSI1)
  • 1x MIPI DSI1

3. Expansion & Storage

3.1Memory Card:

  • 1x TF Card (Micro SD Card Slot)

3.2GPIO & I/O:

  • 4x Digital Outputs (DO)
  • 4x Digital Inputs (DI)

4. Power & Management

4.1Power Input:

  • 1x Power IN (Main Power Supply)    12V
  • 1x Battery Connector (Backup Power)

4.2 Additional:

  • 1x 5V FAN Control Port
  • 1x Reset Button
  • LED Status Indicator

5. Onboard Features

  • Industrial Interfaces: CAN, RS485 (2x), RS232
  • High-Speed Connectivity: USB3.0, 2.5Gbe Ethernet

6. Physical

  • Dimensions:  135mmx114mm
  • Mounting:    4xFixing hole

7.Working Temperature

  • 0-70°
