Description
Product Compare

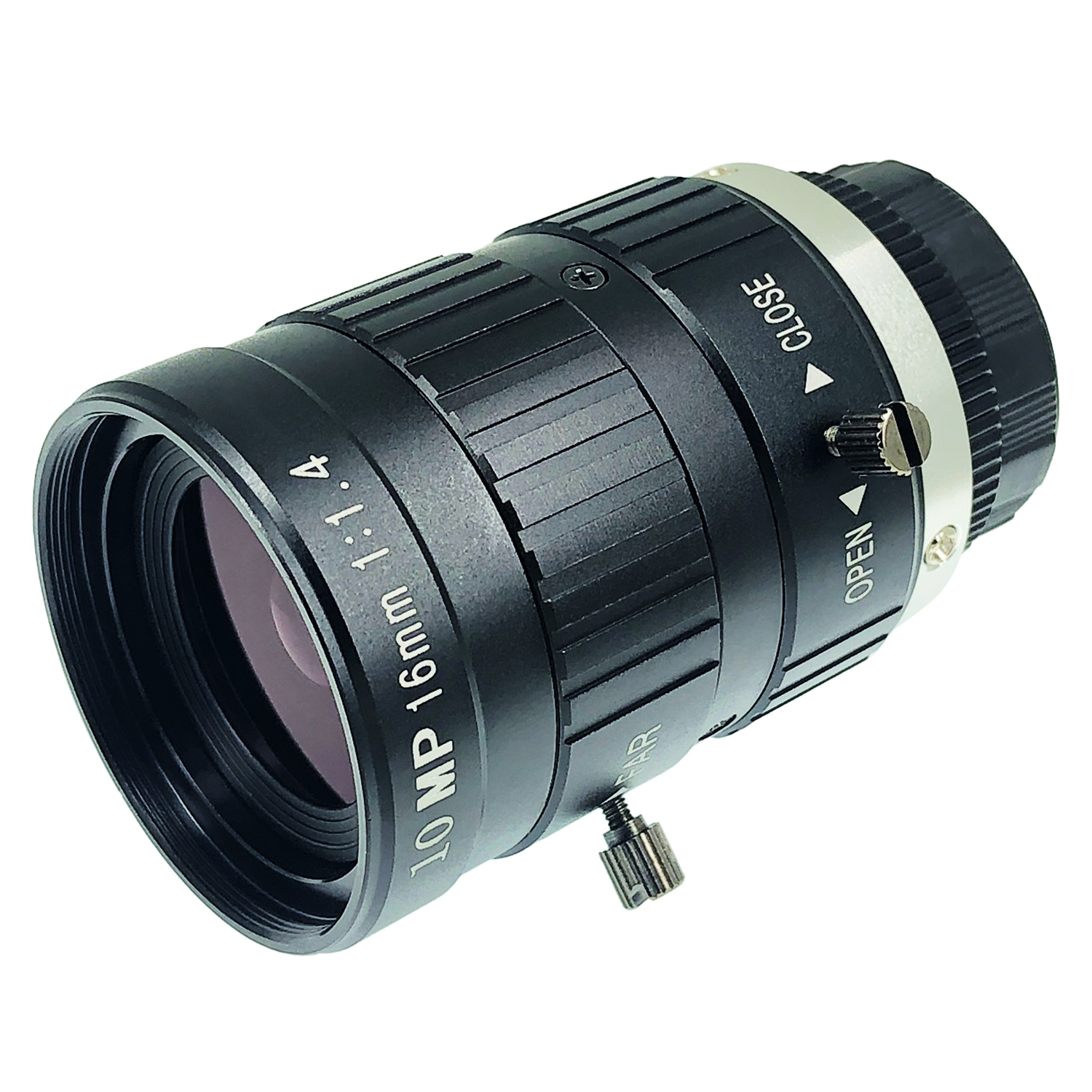

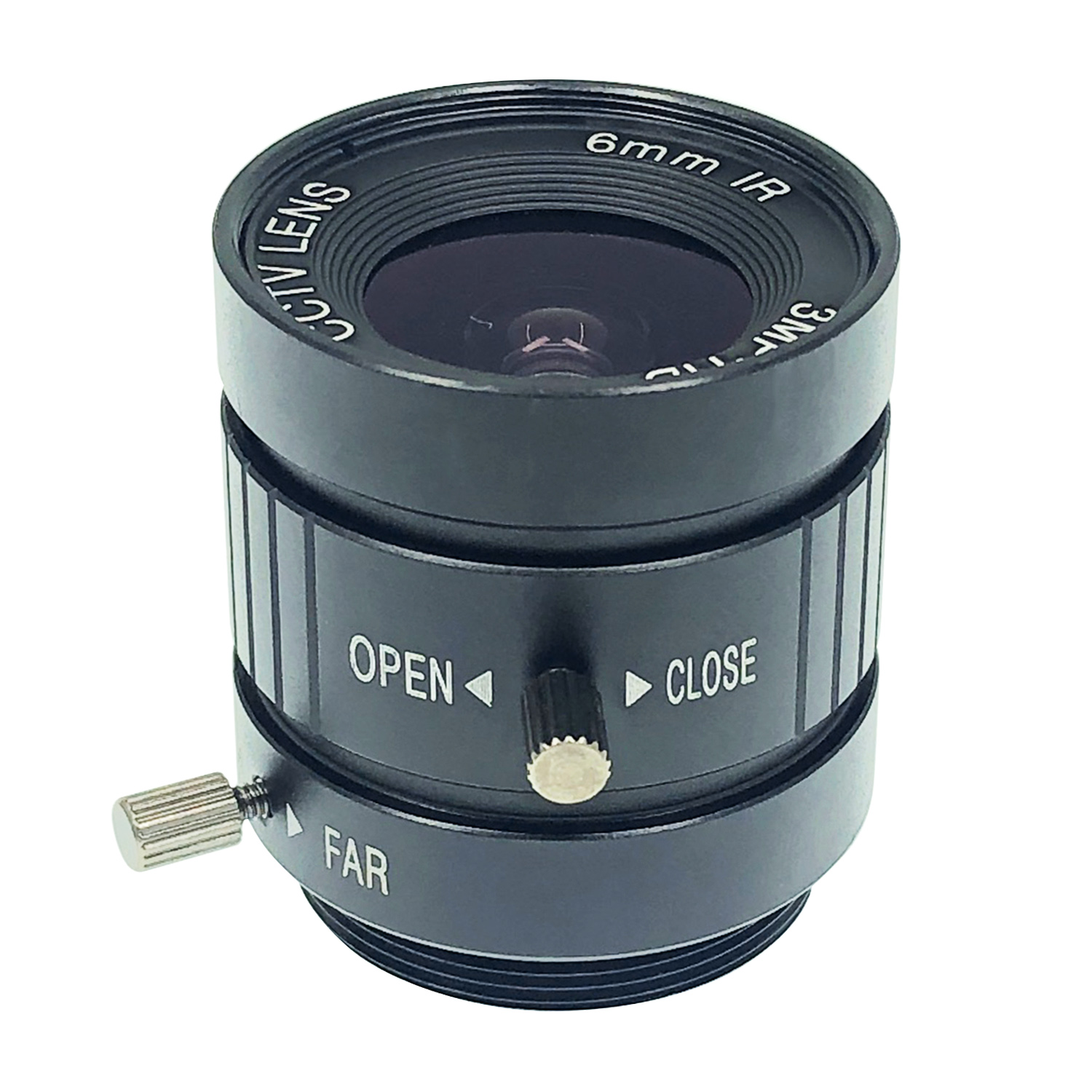

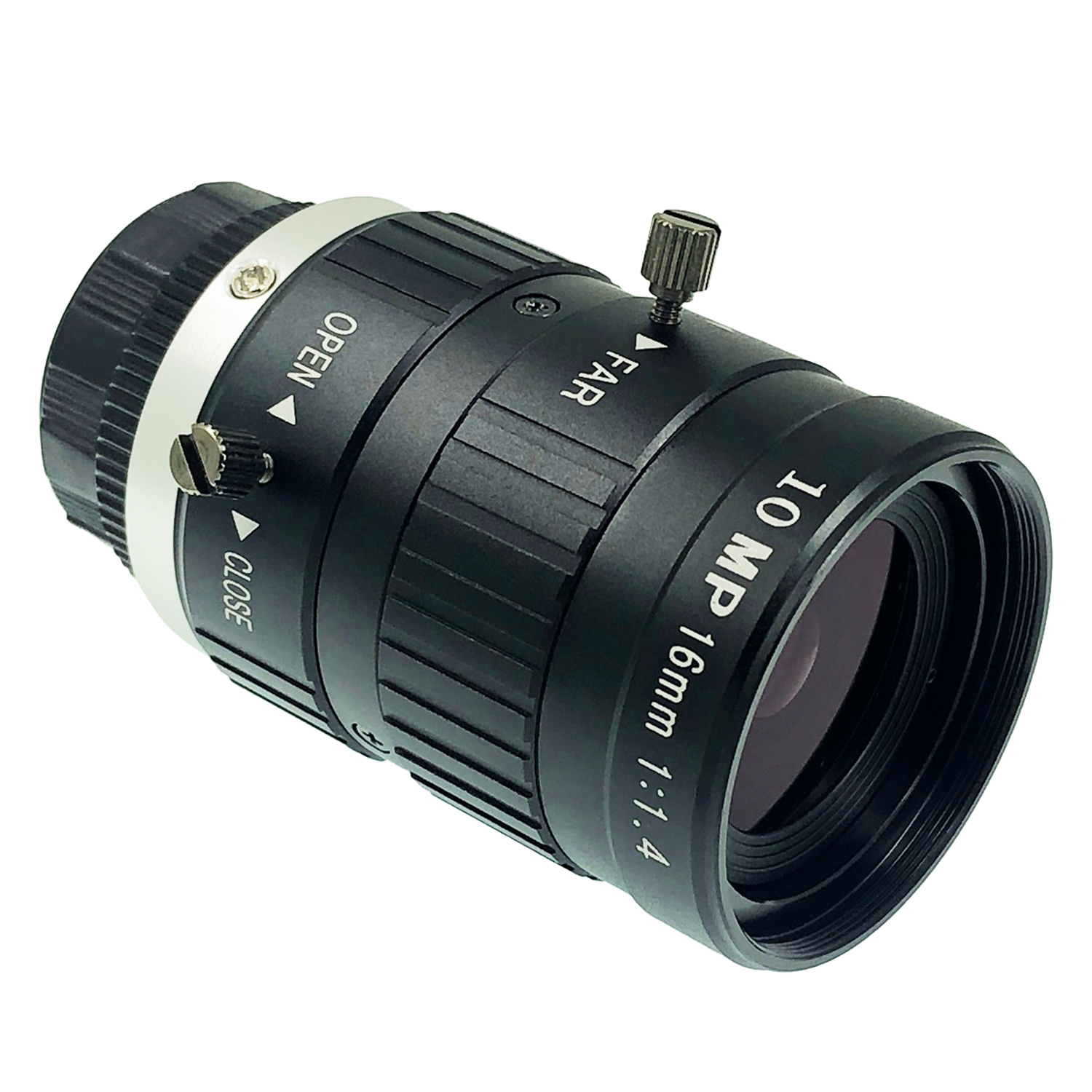

| Item Name | CW-16MM-LENS-BLUE | CW-16MM-LENS | CW-6MM-LENS |
| Picttures |  |
 |
 |
| Focal Length: | 16.0mm | 16.0mm | 6.0mm |
| Optical Format: | 1″(Φ16、12.8×9.6） | 1″(Φ16、12.8×9.6） | 1/2″ |
| F/N: | N/A | N/A | 1.2mm |
| D/f’: | F1.4-16 | 1：1.4 | N/A |
| Mount: | C/CS | C/CS Mount | C/CS |
| FOV | 1″:44.6°*33.6° 2/3″:30.0°*23.2° 1/1.8″:24.7°*18.6° 1/2″:21.8°*16.4° |
1″:44.6°*33.6° 2/3″:30.0°*23.2° 1/1.8″:24.7°*18.6° 1/2″:21.8°*16.4° |
63° |
| Back Focal Length： | 17.53mm | 17.53mm | 7.53mm |
| Optical length: | 69.53mm | N/A | N/A |
| Distortion: | 1″ sensor (-0.7%), 1/2″ sensor(-0.5%), 1/3″ sensor(-0.15%) |
0.05% | N/A |
| Iris Type: | Manual | Manual | Manual |
| MTF： | 10Mega Pixel | 10Mega Pixel | 3Mega Pixel |
| M.O.D: | 0.2m | 0.20m~∞ | 0.2m |
| Dimension: | Φ39.0*50.00 | Φ36.0*52.00 mm | Φ30*34 |
| Weight: | 135.3g | 110g | 53g |
| Operation: | Zoom: Manual; Iris Type: Manual; Focus: Manual; | N/A | N/A |
| Structure: | Aluminum alloy+9G | Aluminum alloy+9G | Aluminum alloy+6G |
| Packing List |
|
|
|

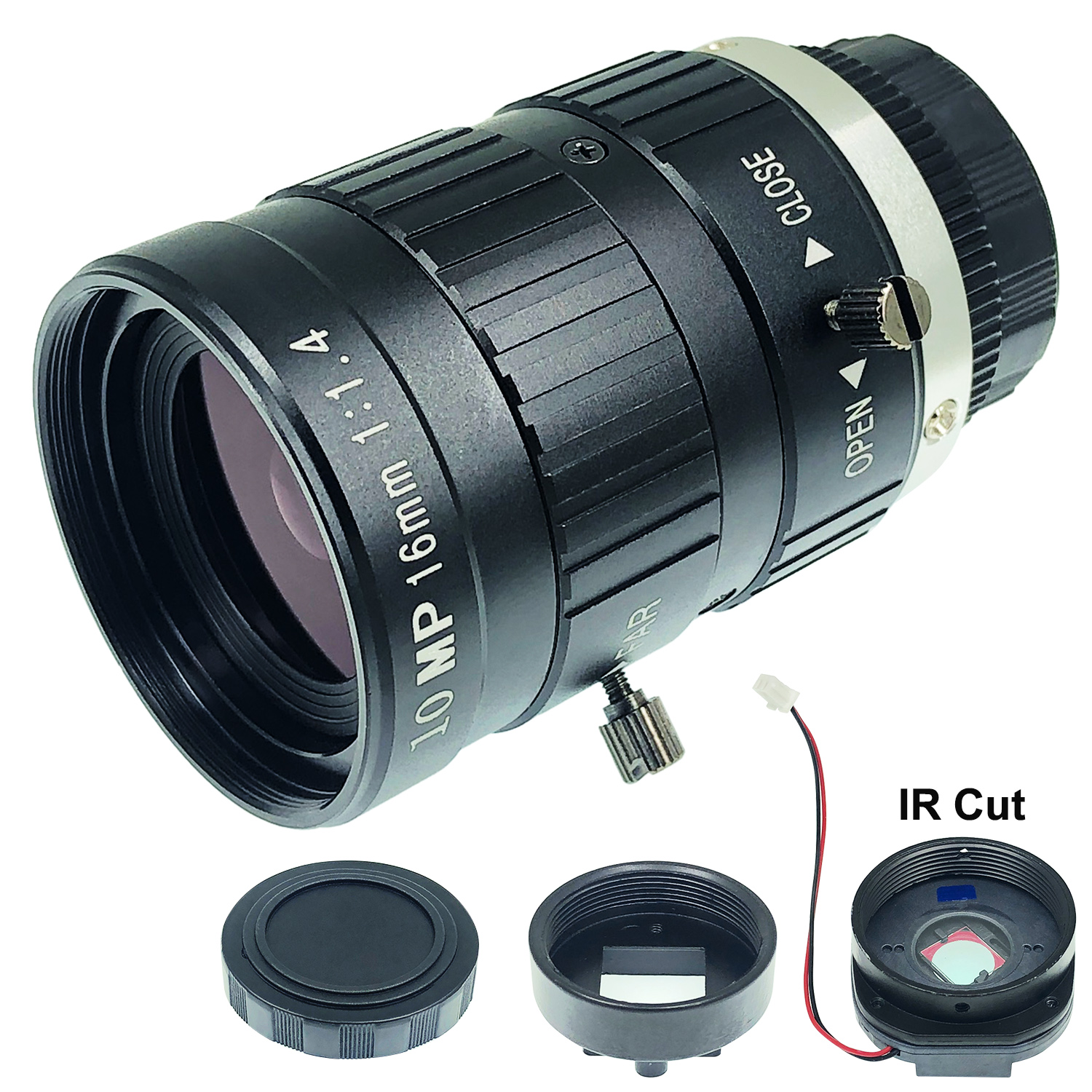

Packing List:
- CS Lensx1
- C To CS Adapterx1
- CS Lens Holder x1
- CS Lens Holder IR Cutx1
